Pulse lavage

About Pulse lavage

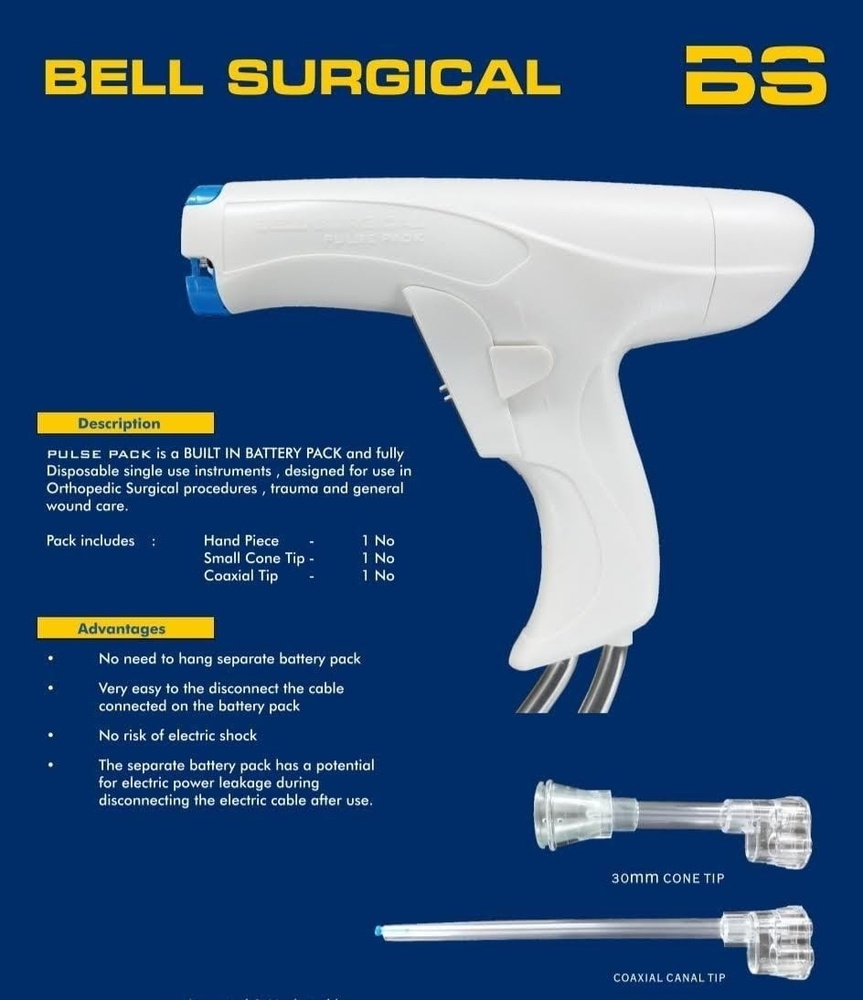

Pulse Pack Specification

Description

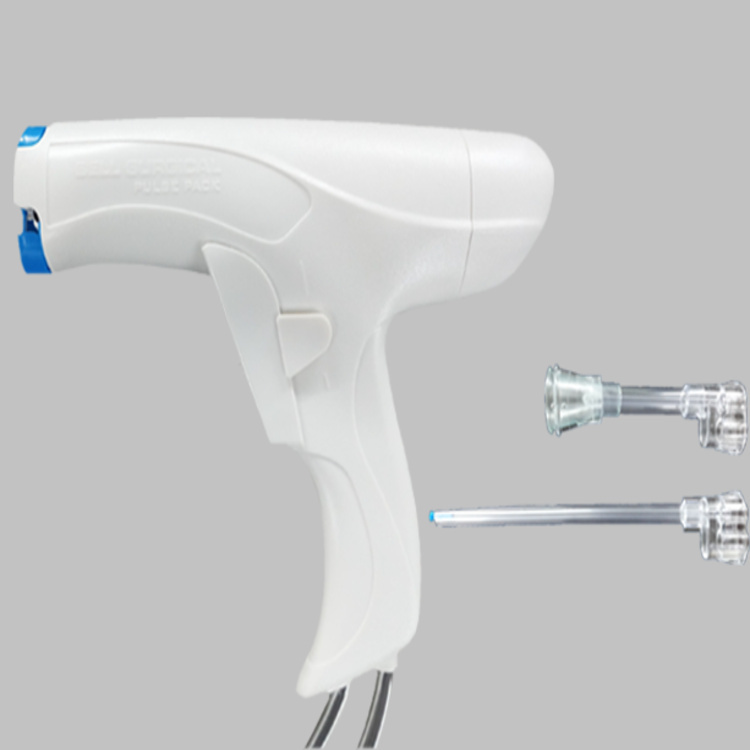

The Pulse Pack is a built in battery powered, fully disposable single use instrument designed for use in orthopedic surgical procedures, trauma, and general wound care.

Pack Includes

• Hand Piece 1 No

• Small Cone Tip 1 No

• Coaxial Tip 1 No

Advantages

• No need for a separate hanging battery pack

• Easy to connect and disconnect the cable from the battery pack

• No risk of electric shock

• Reduces the risk of electric power leakage after disconnecting the electric cable

Instruction for Use

• Open the pack and remove all items

• Attach the required tip to the handle of the gun and ensure it is securely connected

• Lock the tip by pressing the locking ring and retract it for removal

• Attach the irrigation line to the irrigation source

• Attach the suction line to the suction source

• Remove the trigger protector

• Press the top of the trigger for high speed operation

• Press the bottom of the trigger for low speed operation

• Centre the trigger for no fluid delivery

• The device has adjustable clamps on the irrigation and suction lines to prevent leakage

Warnings

• Dispose of the device safely according to national and international waste guidelines

• Store in a cool and dry place

• Single use only. Do not re sterilize

Technical Specification

• Power supply DC 10.5 V battery

• Tube length 3 meters

• High speed flow rate up to 1000 ml per minute

• Low speed flow rate up to 700 ml per minute

• Pressure up to 15 PSI
